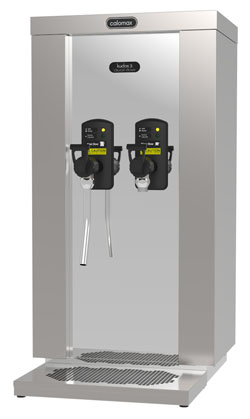

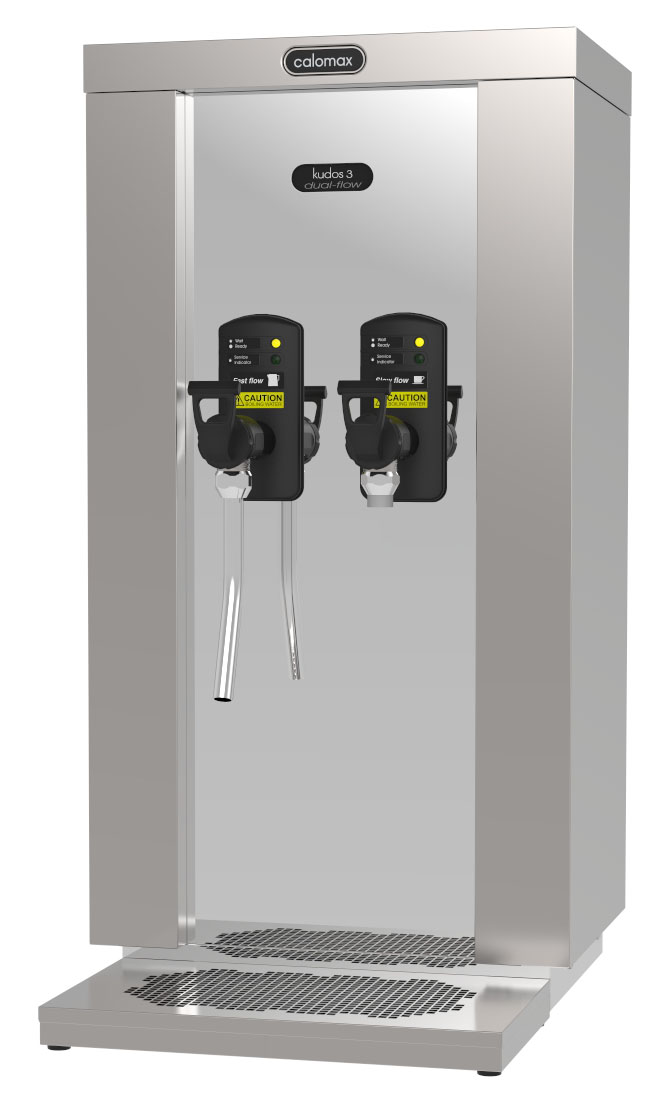

Kudos Dual-flow range

THESE MODELS HAVE BEEN SUPERSEDED BY THE HT3C20 & HT6C20. CLICK HERE TO VIEW THIS NEW RANGE



The Dualflow system has two dispensing nozzles which operate at different flow rates: one faster for use with large vessels, the other slower for filling small cups safely, without scalding or splashing.

Key Features:

  • Choice of flow rates to ensure suitability for all applications
  • Integral scale-inhibitor technology
  • Service indicator
  • Attractive two-tone outercasing
  • Optional mirror finish back cover to conceal connections
  • Safety heat-shroud fitted to tap
  • Supplied with complementary spill-tray
  • 2 years warranty
  • No steam emissions
  • 13A plug fitted on 3kW version
  • Simple installation
  • Supplied complete with food grade hose





  Any water fitting or water-using appliance connected to the mains water supply must comply with the Water Fittings Regulations (or Byelaws in Scotland). This ensures the appliance does not waste or contaminate the drinking water supply. In order to demonstrate compliance, a number of companies exist (typically WRAS or Kiwa) who test appliances to ensure they conform with these regulations.






Size Ref Casing Rating Capacity
(including initial draw-off)

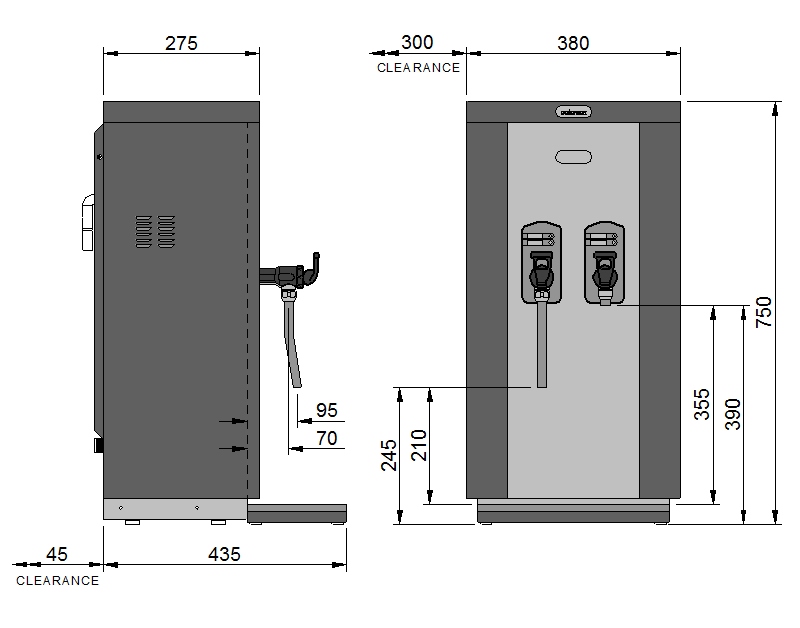

Dimensions
(W x D x H)
List Price

22 Litre KUD-3/DF Stainless steel 3kW 50 litres per hour 380 x 275 x 745 No longer available

22 Litre KUD-6/DF Stainless steel 6kW 78 litres per hour 380 x 275 x 745 No longer available




You may also require:


Base Clamp

Plug-in Digital time switch

15mm Stub to 3/4"BSP converter

* 3-phase supply
